The Milltronics CNC lathes offer a great combination of features and performance at an attractive price. They are well built, reliable, easy to use and are available with the Smart Conversational Control.

ML-Series

Milltronics ML Series combination lathes offer both manual and CNC operations for tool rooms and job shops. They can be configured with many options and other features such as bore sizes and bed lengths – including live tooling and C-axis.

ML16II/40

  • 17″ swing, 40″ length
  • Spindle bore: 2.04″
  • Spindle speed: 4,000 rpm
  • Std. 8-station turret

ML18/60

  • 19″ swing, 60″ length
  • Spindle bore: 2.56″
  • Spindle speed: 2,600 rpm
  • Std. 8-station turret

ML22II/60

  • 23″ swing, 63.5″ length
  • Spindle bore: 3.22″
  • Spindle speed: 2,600 rpm
  • Std. 8-station turret

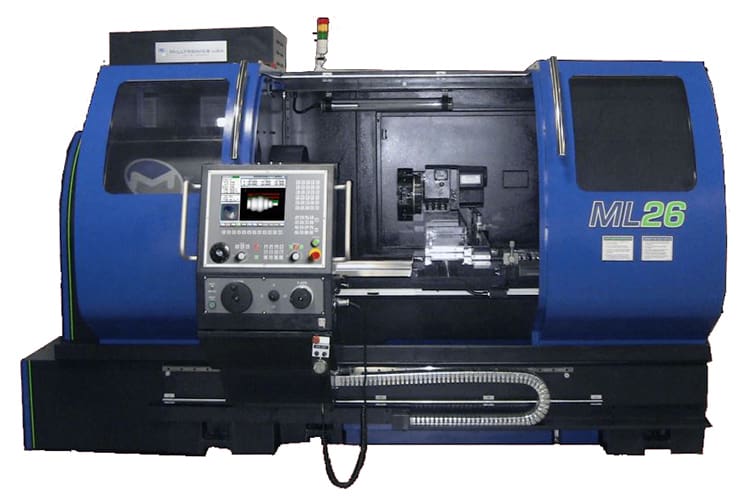

ML26/40

  • 27″ swing, 40″ length
  • Spindle bore: 3.22″
  • Spindle speed: 2,600 rpm
  • Std. 8-station turret

ML26/80

  • 27″ swing, 80″ length
  • Spindle bore: 4.17″
  • Spindle speed: 1,600 rpm
  • Std. 8-station turret

ML26/120

  • 27″ swing, 120″ length
  • Spindle bore: 6.02″
  • Spindle speed: 1,600 rpm
  • Std. 8-station turret

ML35II/80

  • 36.2″ swing, 87″ length
  • Spindle bore: 10″
  • Spindle speed: 900 rpm
  • Std. 8-station turret

SL-Series

The Milltronics SLII Series CNC lathes offer a great combination of features and performance at an attractive price. They are well built, reliable, and easy to use. The SLII Series machines feature robust true slant bed castings, linear motion guide roller ways, direct coupled ballscrews, and the 9000 Series control.

SL6-II

  • 6″ 3-jaw chuck
  • Max. turning diameter of 12″
  • Max. turning length of 13″
  • Spindle speed: 6,000 rpm
  • Std. 12-station auto turret

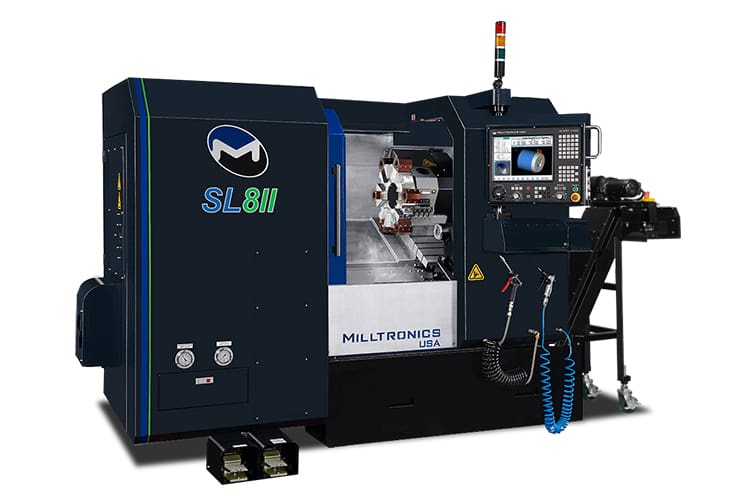

SL8-II

  • 8″ 3-jaw chuck
  • Max. turning diameter of 14″
  • Max. turning length of 20.7″
  • Spindle speed: 4,000 rpm
  • Std. 12-station auto turret

SL10-II

  • 10″ 3-jaw chuck
  • Spindle bore 3.74″
  • Max. turning length of 29.9″
  • 30 HP spindle motor
  • Std. 12-station auto turret
