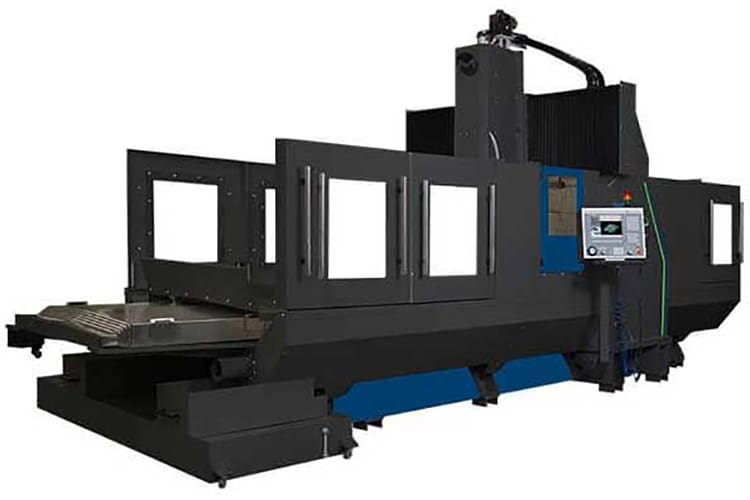

The Milltronics BR Series bridge mills are fast machines in between a CNC router and a heavy-duty cast bridge mill. With speeds of up to 1,000 IPM, BR Series mills are built with linear cross roller guides, 24 HP 40 taper BIG-PLUSĀ® inline spindles (either 10,000 or 15,000 RPM), and massive travels. Available with Milltronics 9000-DGI Conversational Control.

BR-SERIES

BR6150IL

  • Travel (X, Y, Z): 150″ x 60″ x 28″
  • Spindle: 40 taper BIG-PLUS, 10,000rpm
  • Tools: 24 station tool changer
  • Rapid Feed: 750/1000ipm

BR8100IL

  • Travel (X, Y, Z): 150″ x 60″ x 28″
  • Spindle: 40 taper BIG-PLUS, 10,000rpm
  • Tools: 24 station tool changer
  • Rapid Feed: 750/1000ipm

BR8150IL

  • Travel (X, Y, Z): 60″ x 30″ x 24″
  • Spindle: 50 taper BIG-PLUS, 8,000rpm
  • Tools: 30 pocket double arm ATC
  • Rapid Feed: 1,000/787ipm

BR8200IL

  • Travel (X, Y, Z): 84″ x 34″ x 30″
  • Spindle: 50 taper BIG-PLUS, 8,000rpm
  • Tools: 32 pocket double arm ATC
  • Rapid Feed: 709/530ipm
