Effortless & Reliable: Handheld Wire Measuring Gage

A Surprising Tool for Measuring Wire, Tube, and More—Fast

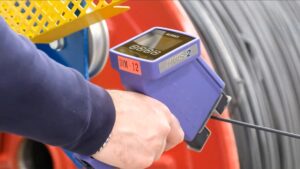

It might look like a barcode scanner or even a toy blaster from a sci-fi movie, but the Handy Wire Scanner is a compact, high-precision wire measuring gage designed to give fast, repeatable diameter readings on the shop floor or in the lab.

Built by Aichelin’s Marposs Division, this portable device can measure wire, tubing, cable, dowel pins, springs, fasteners, and even fishing line—with microns of repeatability.

How It Works

The Handy Wire Scanner uses LED and CCD technology with crossed sensor beams. That means you don’t need to perfectly align the part—a little misalignment won’t affect the measurement. You just insert the part between the sensors, pull the trigger, and the display gives you a reading instantly.

Use it to measure:

• Wire or tubing during extrusion

• Fasteners or blanks in production

• Small components in a quality lab

• Tooling rods, nails, hose, and more

How Accurate Is It?

While using it casually, we saw repeatability within 3 microns—surprisingly precise for a handheld device. Factory specs rate it at ±0.5 microns, or about 20 millionths of an inch. That’s serious accuracy in a portable package.

For critical work, the unit comes with a mounting bracket and roller guide to lock in your setup.

Key Features

• Onboard color LCD screen

• Internal memory and USB output

• Wireless data transmission available

• Portable travel case with calibration artifacts

• Works on magnetic and non-magnetic materials

• Made for both lab and production environments

Need Help?

Ready to simplify small-part measurement? Contact us to order or request a demo.
